Parallel Twin Cylinder

EJS INDUSTRY is a top producer of parallel twin cylinders in our “Town of Screws”.Welcome to buy Parallel Twin Cylinder from us.

Send Inquiry

Product Description

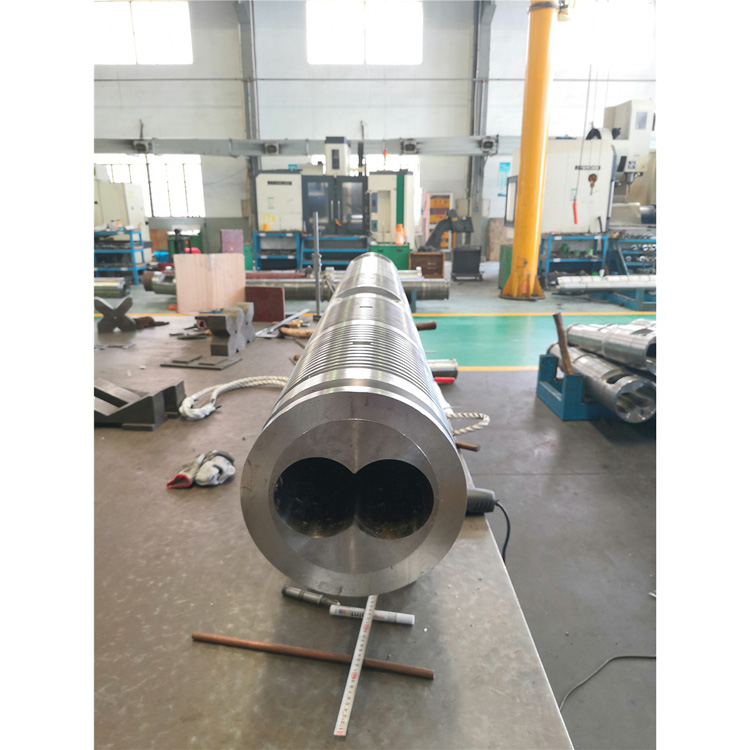

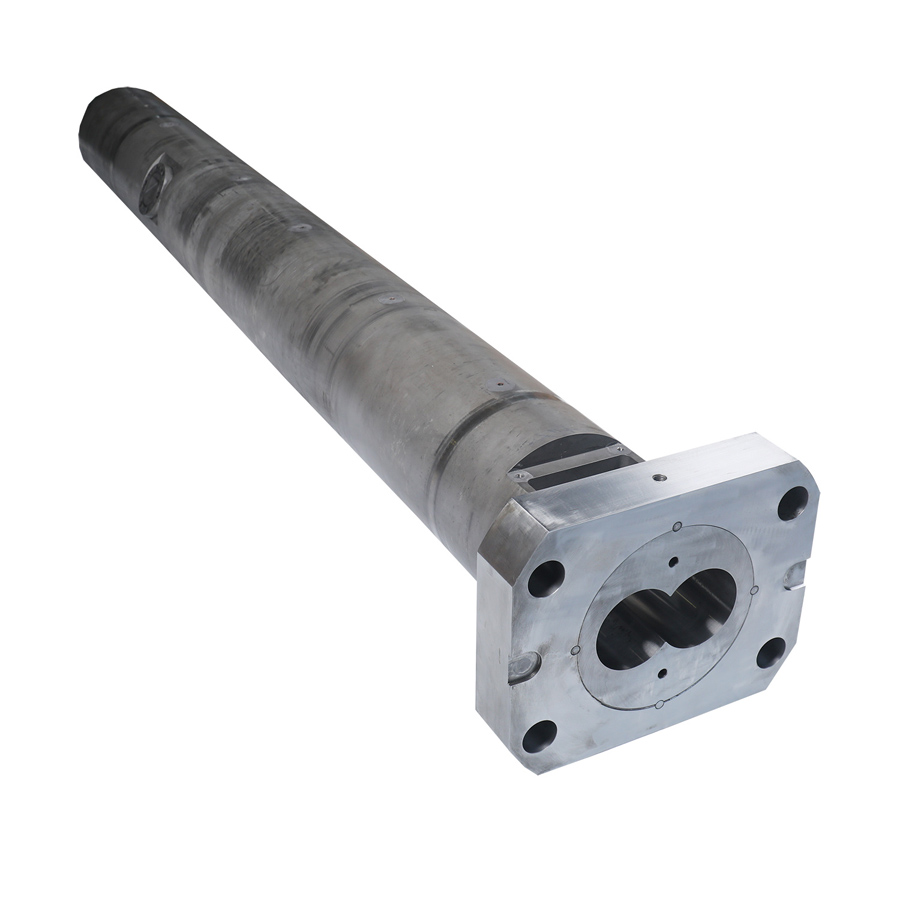

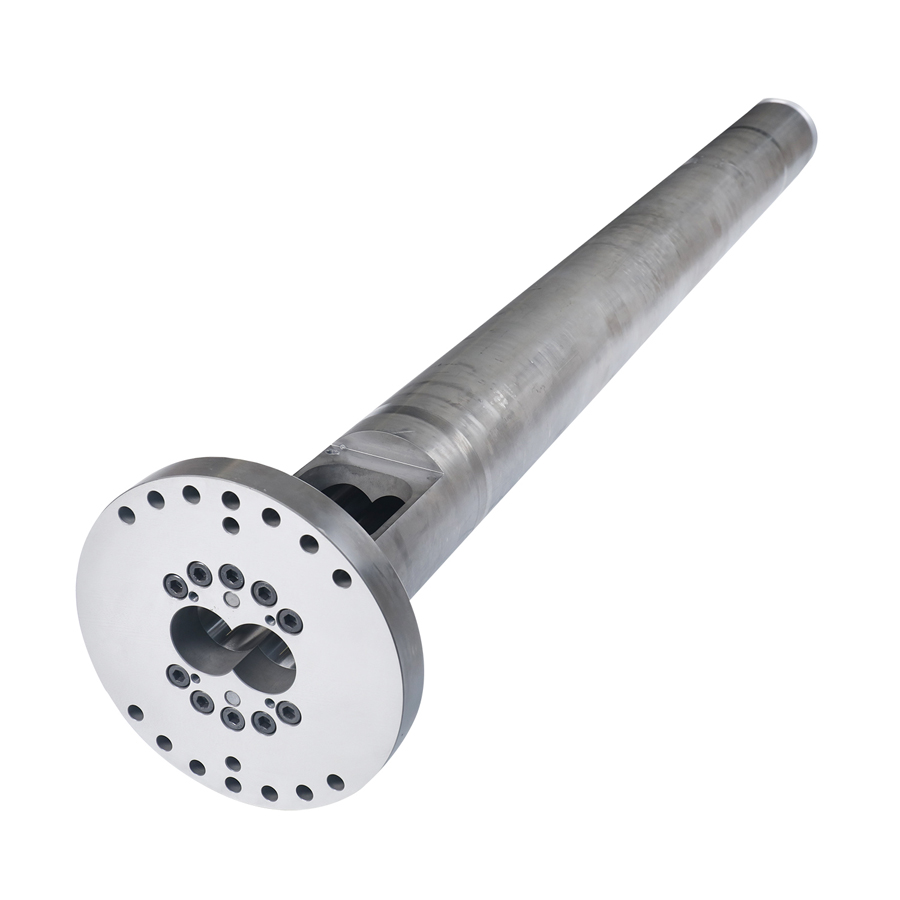

Parallel Twin Cylinder

EJS INDUSTRY is a top producer of parallel twin cylinders in our “Town of Screws”.

When parallel twin cylinders are more requested in the west, EJS can’t fall behind and miss the opportunity to help the customers.

These years, EJS produced many parallel twin cylinders, with smallest bore of 25mm while biggest bore of 250mm.

When parallel twin cylinders are heavy and big, many of them are made with carbide liner to have a longer life, therefore less machine down time,less waiting time on new production, less cost on logistics.

Base steel recommended for parallel twin cylinder:

38CrMoAlA, 34CrAlNi7, 31CrMoV9, 40Cr

Surface treatment recommended for parallel twin cylinders:

Nitriding, Bimetallic

How fast can we receive the parallel twin cylinder when the order is issued?

Goods arrival time=order confirmation time + payment time + drawing confirmation time+ production time + export customs time + transportation time from EJS to your warehouse after customs declaration.

EJS sales always work closely with customers to reduce as much time as possible from one step to the next, some are controllable by EJS, some are out of our control, some are to be taken care of by customers, therefore TEAMWORK is essential.

About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.

Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels
Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Alloy Components		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		★★★	★★	★★★	★★★★
Corrosion Resistance		★★	★★★	★★★	★★★
Alloy Thickness		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficient Thermal	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		700mm~3000mm/piece
Base Steel Vastly Used		40Cr: 42CrMo
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Bimetallic Screws
Suitable for	Single Screw, Twin Parallel Screw, Twin Conical Screw
Alloy Type	Ni60	CoImonoy 56	CoImonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Thickness	1~1.5mm	1~1.5mm	1~1.5mm
Hardness	HRC 56-62	HRC 46~61	HRC 43-48
Applied Glass Fiber	Under 10%
Range of Workable Length	Any length needed
Base Steel Vastly Used	38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.

Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
