Planetary Roller Extruder Screw Barrel

EJS factory has been producing screw barrels for almost 30 years, however planetary roller extruder screw barrel is new to our factory with less than 10 years.

Send Inquiry

Product Description

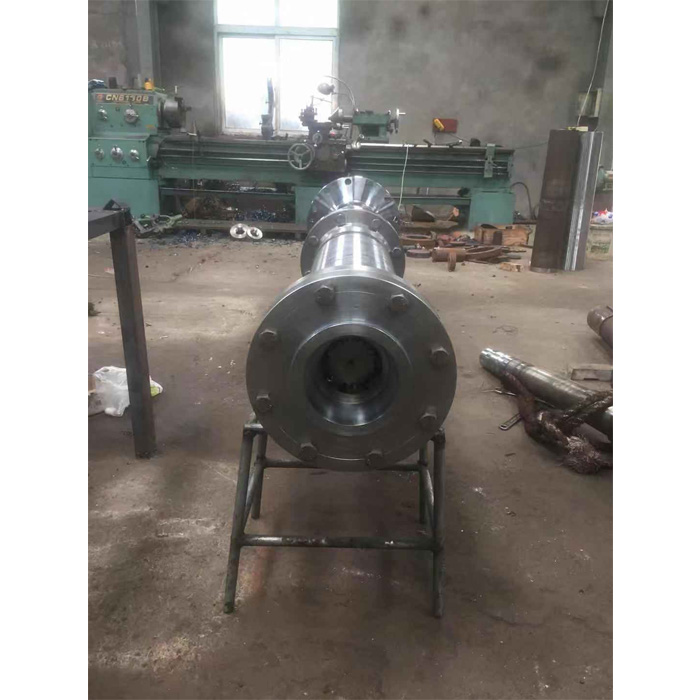

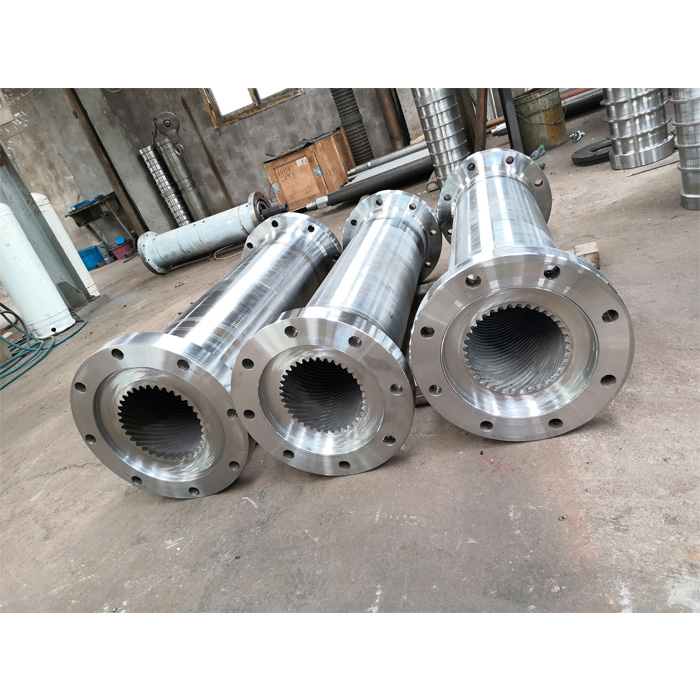

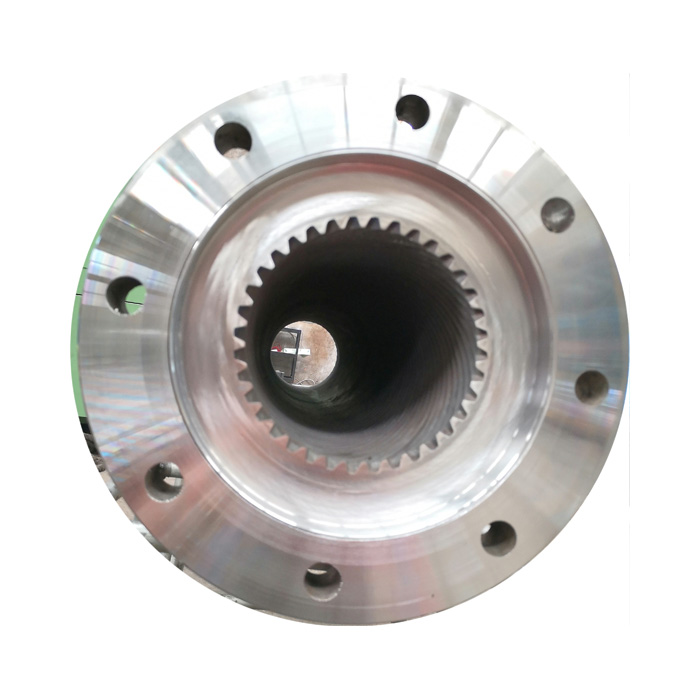

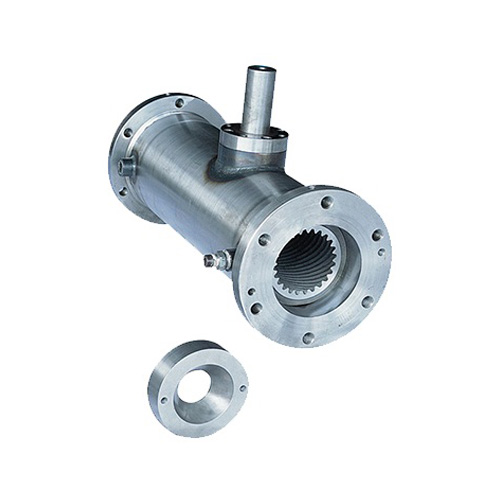

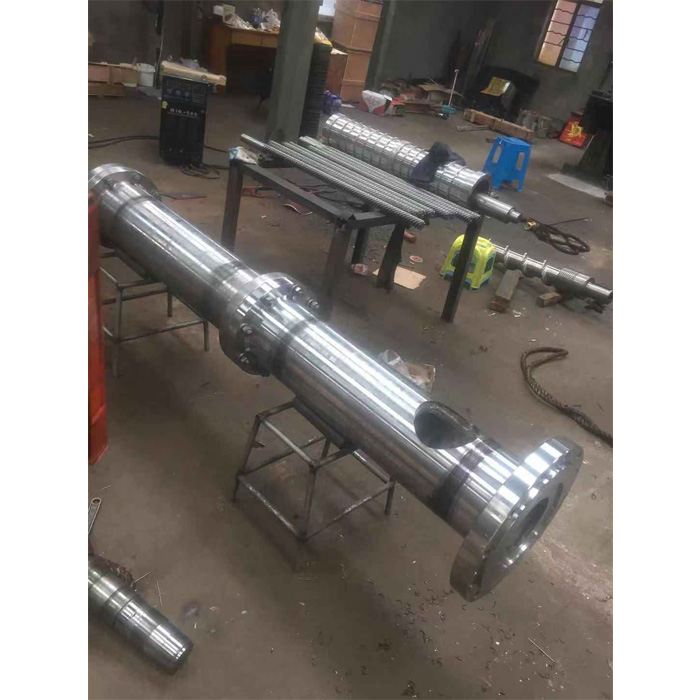

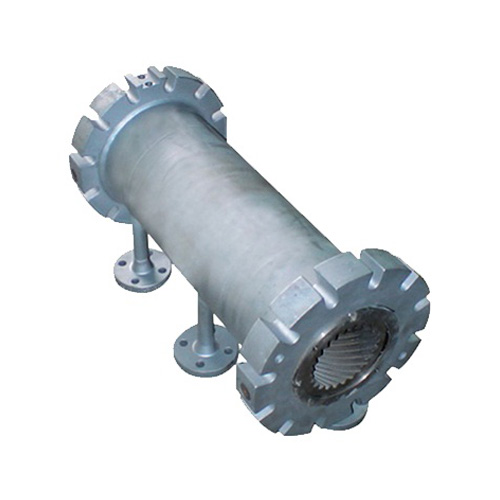

Planetary roller extruder screw barrel

EJS factory has been producing screw barrels for almost 30 years, however planetary roller extruder screw barrel is new to our factory with less than 10 years.

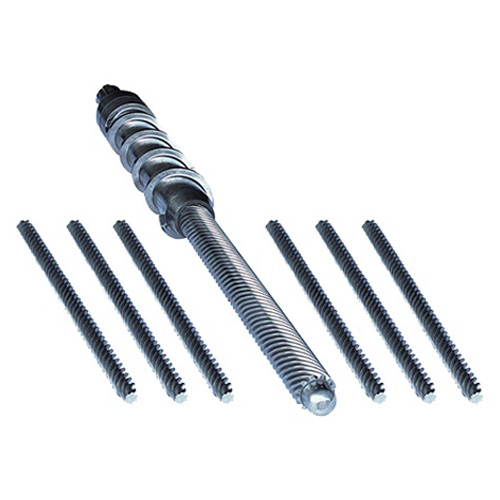

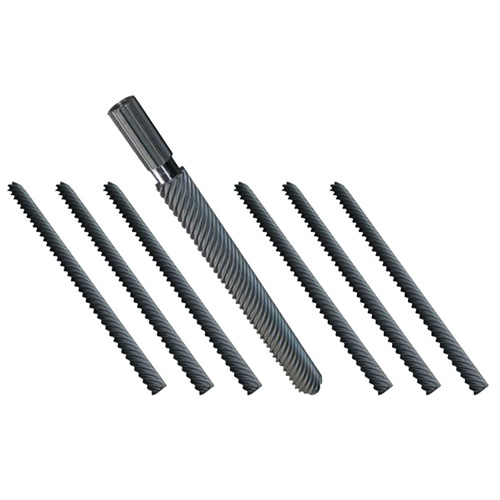

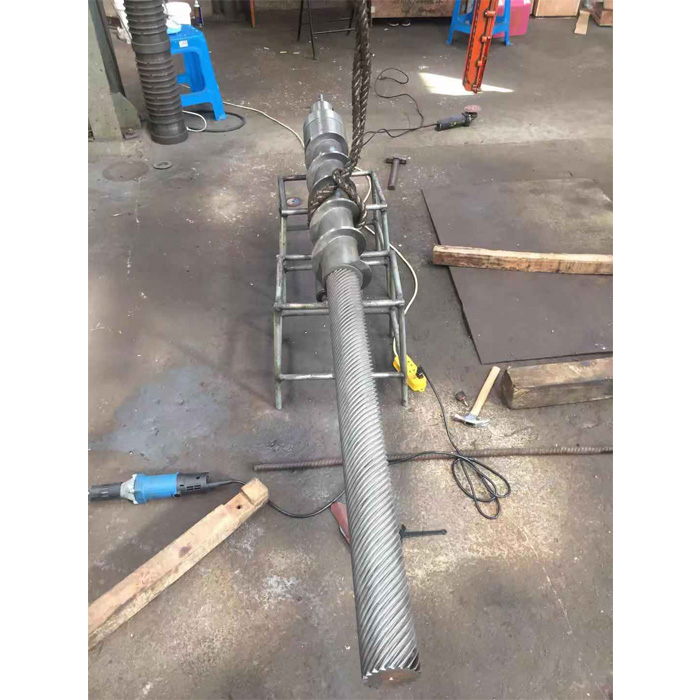

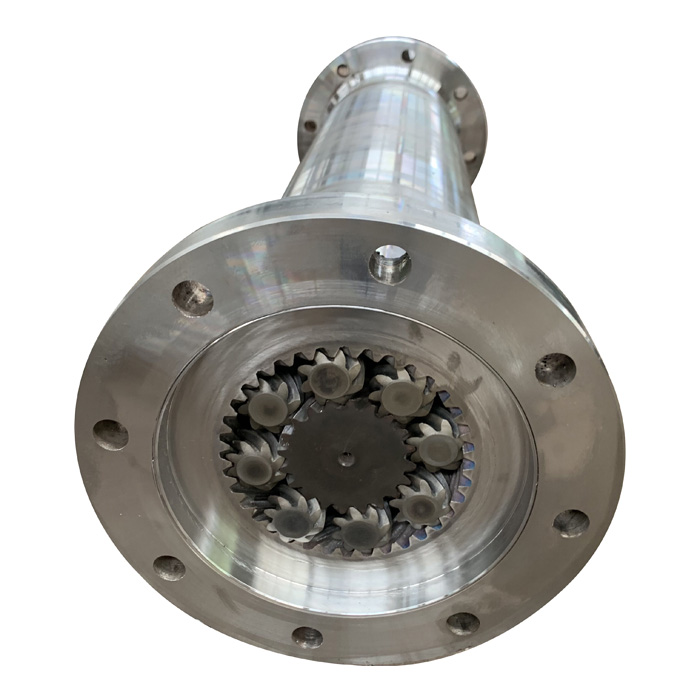

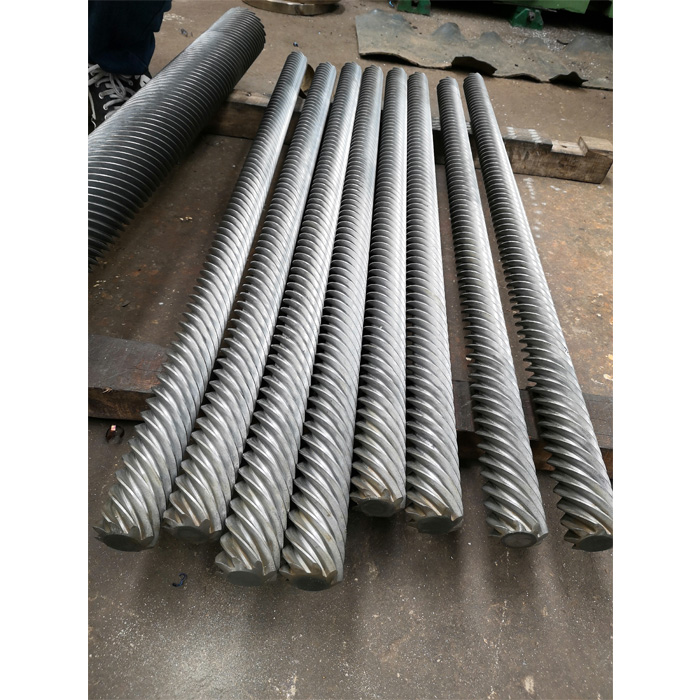

At the early beginning, we made mother screw, slowly we moved to small planetary screws, then the related barrels.

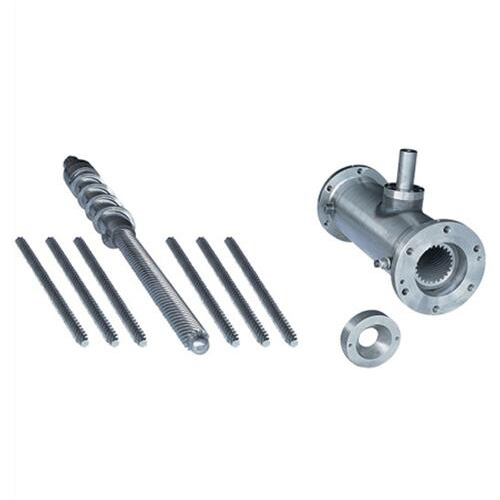

Right now we’re capable to produce planetary roller extruder screw barrel in full sets.

One taste can’t please all. One material can’t work for all applications either, therefore we select a number of other steels to produce screws and barrels for best performances at best costs, this include 31crmov9.
E.J.S has been manufacturing 1.8550 material screw barrel for years, you are welcome to contact EJS Team for more details.

Bore diameter available for Planetary roller extruder screw barrel

¢125~¢355

Popular Materials used for Planetary roller extruder screw barrel

38CrMoAlA(1.8509)

42CrMo(4140)

SKD61

SKD11

Surface Treatment of Planetary roller extruder screw barrel

Nitrided

Bimetallic alloy coated

Hardened

Chrome-plating

Application of Planetary roller extruder screw barrel

Food Industry

Plastic Industry

Elastomer Processing

Colour Industry

Chemical Industry

Composite material

What makes Planetary roller extruder screw barrel outstanding?

Huge output.

Great plasticizing.

Wonderful self-cleaning.

Balanced ratio of shearing and heat transfer.

Excellent controllability of melt temperature.

About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.

Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels
Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Alloy Components		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		★★★	★★	★★★	★★★★
Corrosion Resistance		★★	★★★	★★★	★★★
Alloy Thickness		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficient Thermal	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		700mm~3000mm/piece
Base Steel Vastly Used		40Cr: 42CrMo
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Bimetallic Screws
Suitable for	Single Screw, Twin Parallel Screw, Twin Conical Screw
Alloy Type	Ni60	CoImonoy 56	CoImonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Thickness	1~1.5mm	1~1.5mm	1~1.5mm
Hardness	HRC 56-62	HRC 46~61	HRC 43-48
Applied Glass Fiber	Under 10%
Range of Workable Length	Any length needed
Base Steel Vastly Used	38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.

Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
