Plastic Sheet Extruder Twin Screw Barrel

Plastic sheets are seen in our life very frequently, from packing to stationery, they make our life easy and safe. EJS has been manufacturing plastic sheet extruder twin screw barrel for dozens of years, keeping on providing best quality Plastic sheet extruder twin screw barrel for machine builders as well as end users all over the world, to grow more and better, together with each customer IS ALWAYS our priority.

Send Inquiry

Product Description

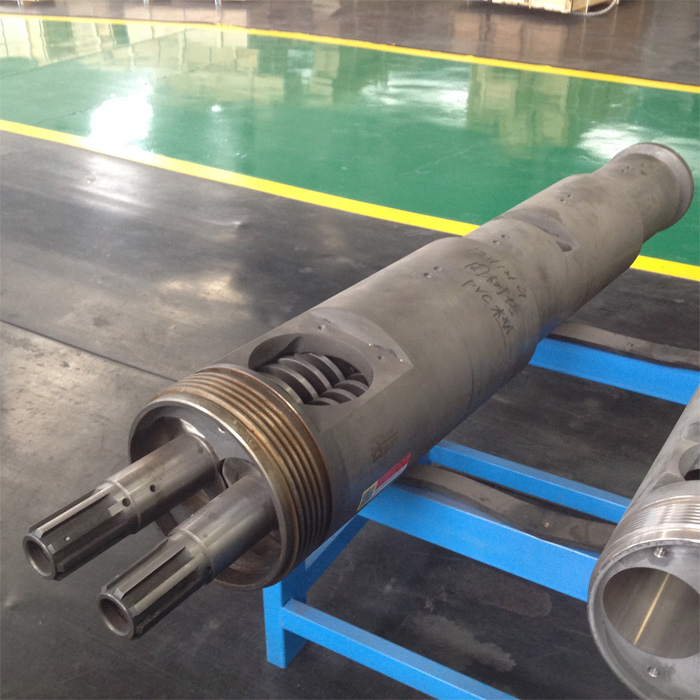

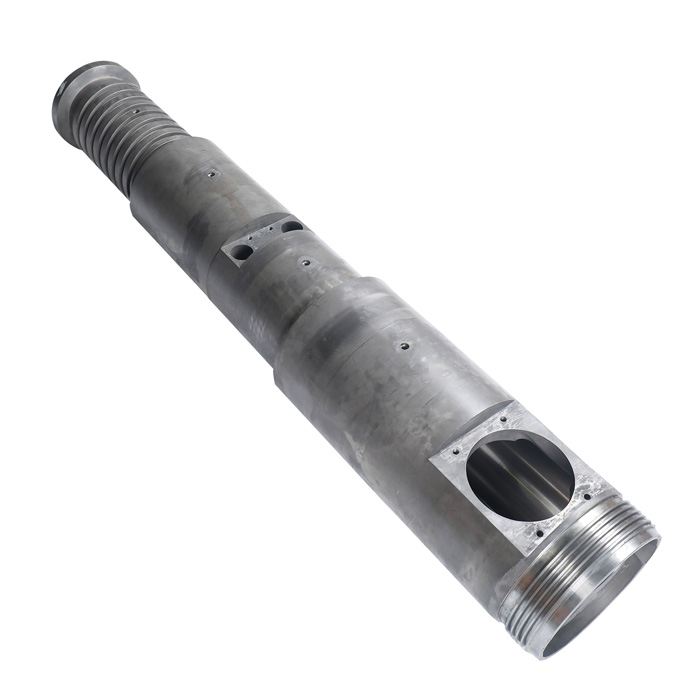

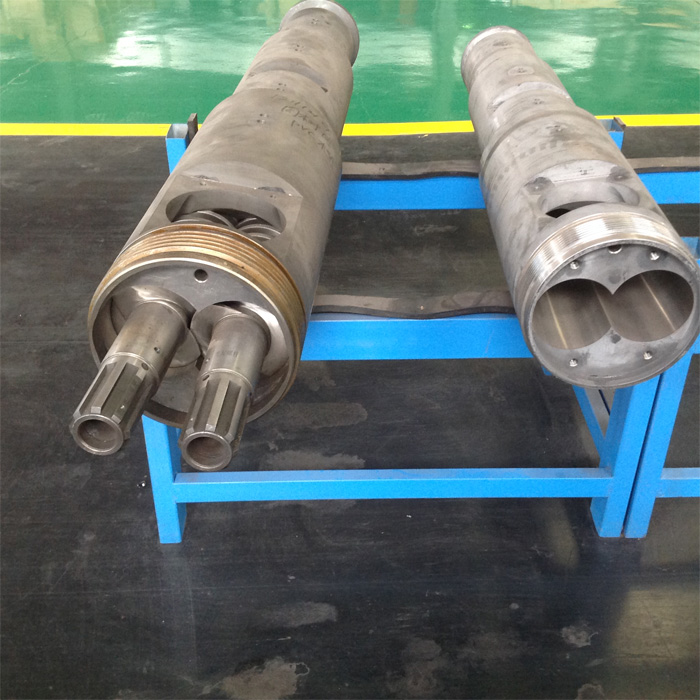

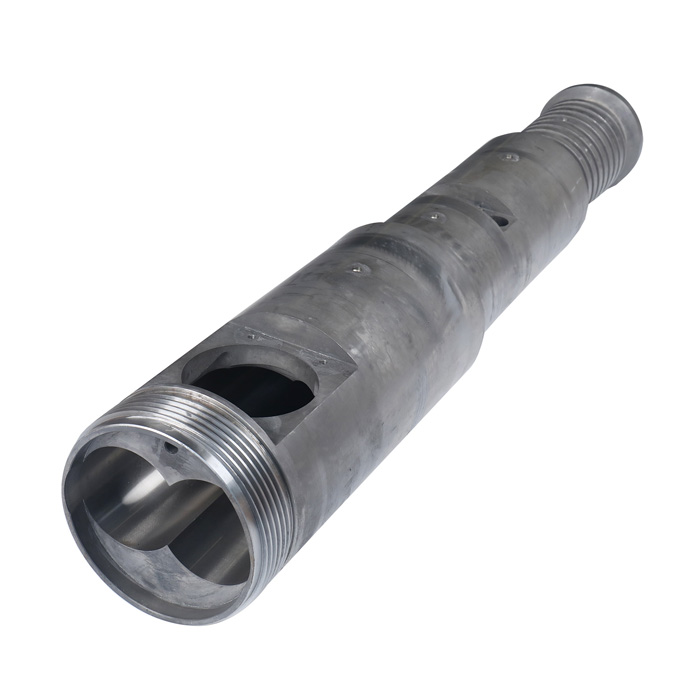

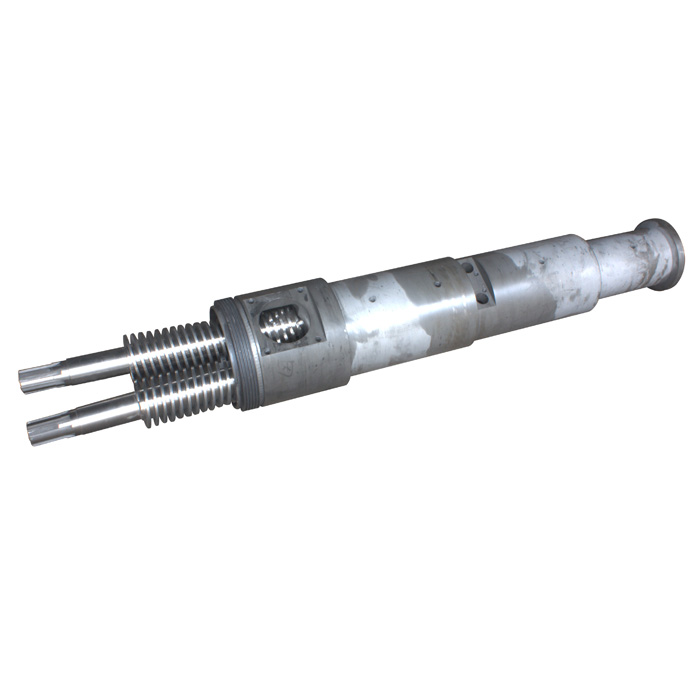

plastic sheet extruder twin screw barrel

Plastic sheets are seen in our life very frequently, from packing to stationery, they make our life easy and safe.

EJS has been manufacturing plastic sheet extruder twin screw barrel for dozens of years, keeping on providing best quality Plastic sheet extruder twin screw barrel for machine builders as well as end users all over the world, to grow more and better, together with each customer IS ALWAYS our priority.

Popular Materials used for plastic sheet extruder twin screw barrel

38CrMoAlA (DIN1.8509)

34CrAlNi7 (DIN1.8550)

31CrMoV9 (DIN1.8519)

40Cr (AISI 4340)

42CrMo ( AISI4140)

Surface Treatment of plastic sheet extruder twin screw barrel

Nitrided;

Bimetallic alloy coating;

Hardened.

Service Industries of plastic sheet extruder twin screw barrel

◆ Aerospace

◆ Artificial Turf Seaming

◆ Arts and Crafts

◆ Automotive

◆ Baking and Chocolate

◆ Book and Document Archival

◆ Cartography

◆ Forensics

◆ Furnishings

◆ Laser Fabrication

◆ Lighting

◆ Manufacturing

◆ Medical / Dental

◆ Office supply

◆ Optical Displays

◆ Printing

◆ Sign Fabrication

◆ Protective Applications

◆ Test equipment

About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.

Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels
Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Alloy Components		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		★★★	★★	★★★	★★★★
Corrosion Resistance		★★	★★★	★★★	★★★
Alloy Thickness		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficient Thermal	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		700mm~3000mm/piece
Base Steel Vastly Used		40Cr: 42CrMo
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Bimetallic Screws
Suitable for	Single Screw, Twin Parallel Screw, Twin Conical Screw
Alloy Type	Ni60	CoImonoy 56	CoImonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Thickness	1~1.5mm	1~1.5mm	1~1.5mm
Hardness	HRC 56-62	HRC 46~61	HRC 43-48
Applied Glass Fiber	Under 10%
Range of Workable Length	Any length needed
Base Steel Vastly Used	38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.

Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
