Stretch Blow Moulding Screw Barrel

Stretch Blow Molding( or Injection stretch blow molding) is a process used for producing bottles commonly used for water, juice and other related items, with good strength, great clarity and uniform consistency. Welcome to buy Stretch Blow Moulding Screw Barrel from us.

Send Inquiry

Product Description

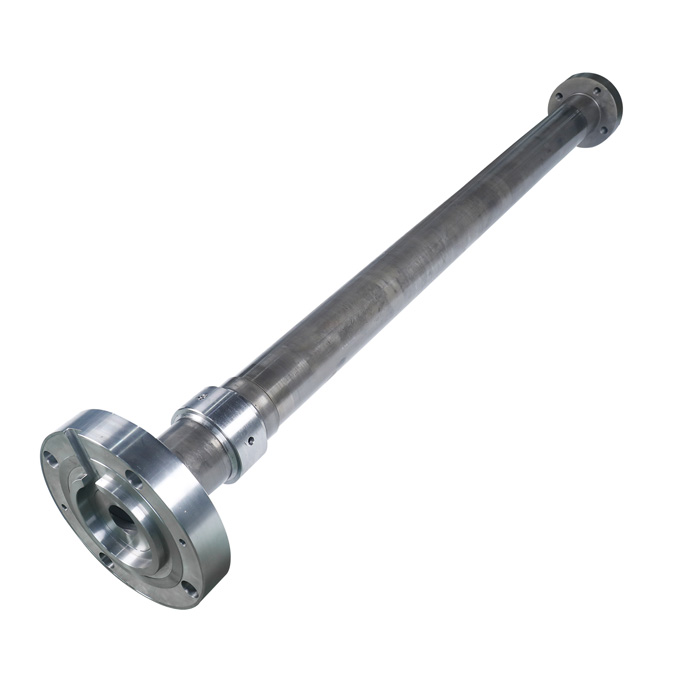

Injection Stretch blow molding Machine screw barrel

Stretch Blow Moulding Screw Barrel is a process used for producing bottles commonly used for water, juice and other related items, with good strength, great clarity and uniform consistency.

PET is the main material used for this process but other materials can be used like PP, tritan etc. in PET stretch blow molding machine.

In this process, a preform is loaded into the automatic PET stretch blow molding machine(preform is typically produced on an injection molding machine) where it is heated up and blown into a finished container.

If you are in stretch blow molding business, if you want to replace your Stretch blow moulding Machine screw barrel, do be free to contact EJS, we will translate your designs and drawings into Injection Stretch blow moulding Machine screw barrel.

Popular Materials used for Injection Stretch blow molding Machine screw barrel

38CrMoAlA(1.8509)

34CrAlNi7(1.8550)

31CrMoV9(1.8519)

40Cr(4340)

42CrMo(4140)

Surface Treatment of Injection Stretch blow molding Machine screw barrel

Full body nitrided

Stellite bimetallic alloy coated

Colmonoy 56 alloy coated

Colmonoy 83 alloy coated

About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.

Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels
Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Alloy Components		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		★★★	★★	★★★	★★★★
Corrosion Resistance		★★	★★★	★★★	★★★
Alloy Thickness		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficient Thermal	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		700mm~3000mm/piece
Base Steel Vastly Used		40Cr: 42CrMo
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Bimetallic Screws
Suitable for	Single Screw, Twin Parallel Screw, Twin Conical Screw
Alloy Type	Ni60	CoImonoy 56	CoImonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Thickness	1~1.5mm	1~1.5mm	1~1.5mm
Hardness	HRC 56-62	HRC 46~61	HRC 43-48
Applied Glass Fiber	Under 10%
Range of Workable Length	Any length needed
Base Steel Vastly Used	38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.

Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
