Wire Extrusion Screw Barrel

Wire Extrusion Screw Barrel is used to carry electricity, to bear the mechanical loads, to transmit telecommunication signals, for heating jewellery, clothing, automotive or any industrial manufactured parts like pins, bulbs and needles. A cable is used for power transmission, for telecommunication signals or to carry electricity.

Send Inquiry

Product Description

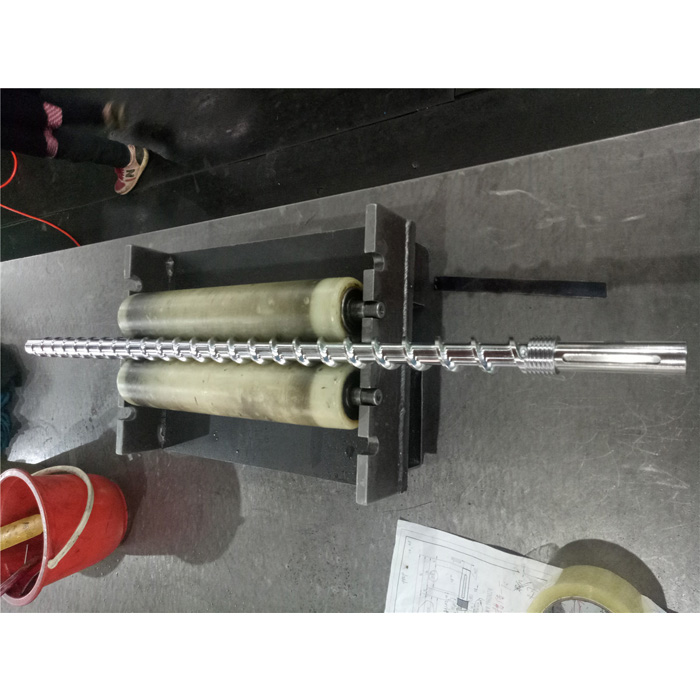

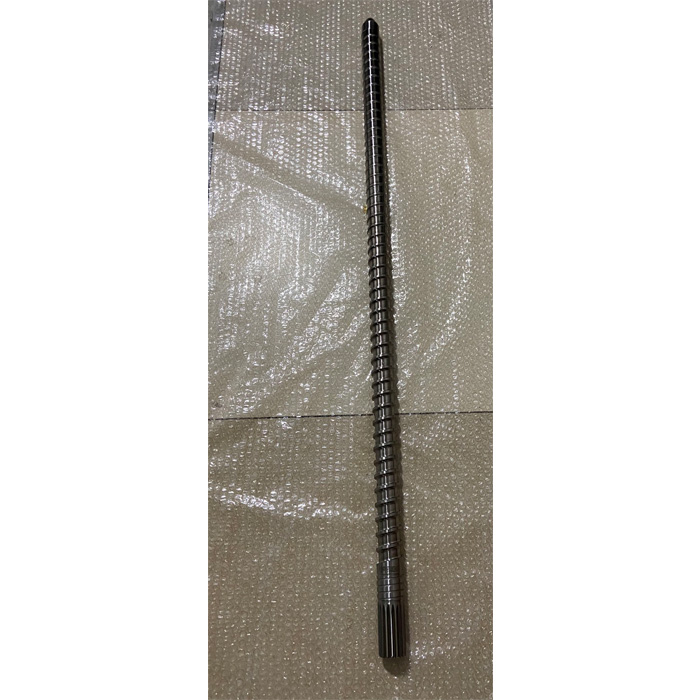

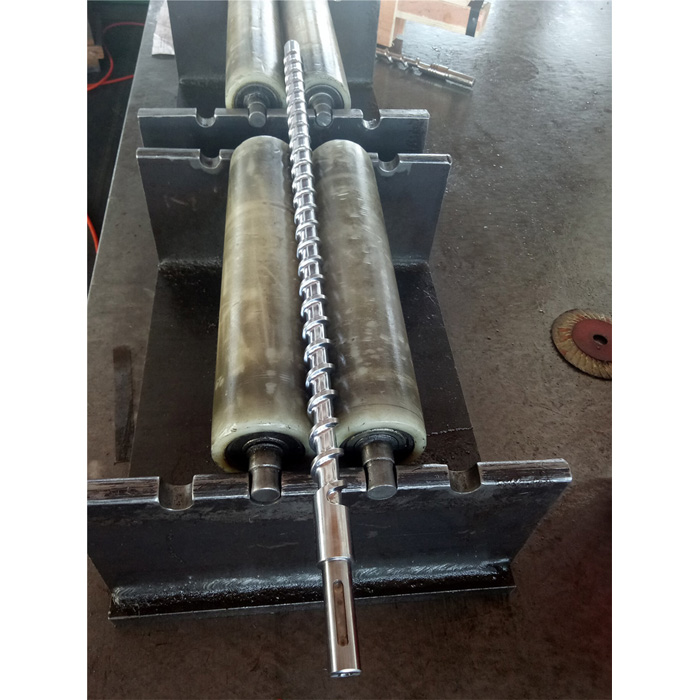

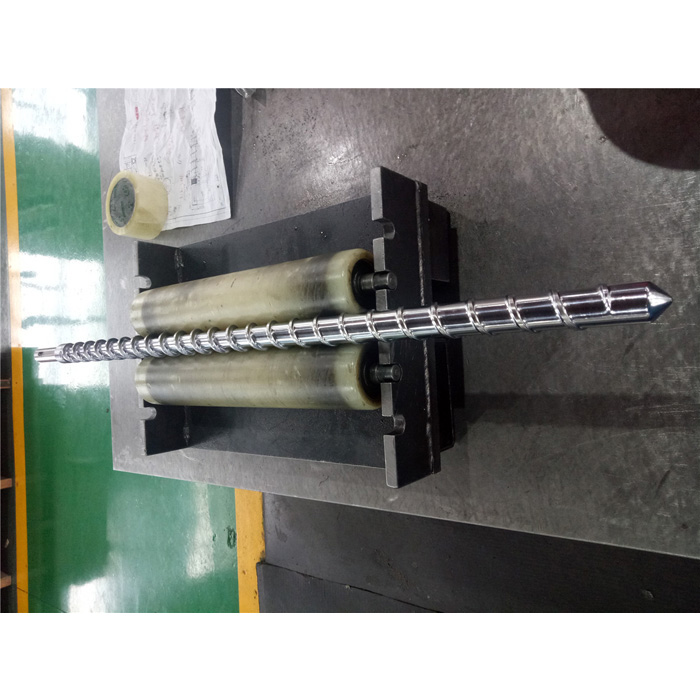

Wire Extrusion Screw Barrel

A wire is used to carry electricity, to bear the mechanical loads, to transmit telecommunication signals, for heating jewellery, clothing, automotive or any industrial manufactured parts like pins, bulbs and needles. A cable is used for power transmission, for telecommunication signals or to carry electricity.

Hence wire and cable are very important in our life. Wire and cable extrusion screw barrel helps to produce wire and cable per request.

Bore diameter available for wire and cable extrusion screw barrel

¢25 ~

Popular Materials used for wire and cable extrusion screw barrel

38CrMoAlA (DIN1.8509)

34CrAlNi7 (DIN1.8550)

31CrMoV9 (DIN1.8519)

40Cr (AISI 4340)

42CrMo ( AISI4140)

D2 (DIN 1.2379)

SKD61

SKD11

Hastelloy 276

Inconel 625

Surface Treatment of wire and cable extrusion screw barrel

Full body nitrided

Ni60 hardfacing bimetallic

Colmonoy #56

Colmonoy 83

Ceramic coating

What types of wires and cables are used according to their purpose?

According to the use, it can be divided into bare wire, insulated wire, heat-resistant wire, shielded wire, power cable, control cable, communication cable, RF cable, etc.

Wire and cable applications

1. Power system

2. Information transmission system

3. Mechanical equipment, instrumentation system

Wire and cable products are mainly divided into five categories

1. Bare wire and bare conductor products

2, power cable

3. Wire and cable for electrical equipment

4, communication cable and fiber (a brief introduction)

5, electromagnetic wire (winding wire

About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.

Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels
Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Alloy Components		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		★★★	★★	★★★	★★★★
Corrosion Resistance		★★	★★★	★★★	★★★
Alloy Thickness		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficient Thermal	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		700mm~3000mm/piece
Base Steel Vastly Used		40Cr: 42CrMo
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Bimetallic Screws
Suitable for	Single Screw, Twin Parallel Screw, Twin Conical Screw
Alloy Type	Ni60	CoImonoy 56	CoImonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Thickness	1~1.5mm	1~1.5mm	1~1.5mm
Hardness	HRC 56-62	HRC 46~61	HRC 43-48
Applied Glass Fiber	Under 10%
Range of Workable Length	Any length needed
Base Steel Vastly Used	38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.

Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
