Barrel Nozzle

Barrel nozzle always stays with its injection barrel. As a producer of injection screw barrels, we EJS naturally produce Barrel nozzles.

Send Inquiry

Product Description

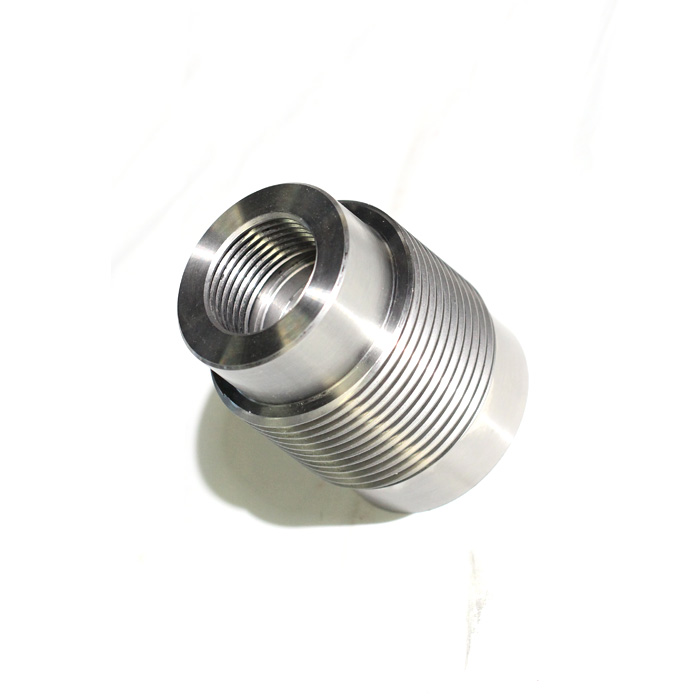

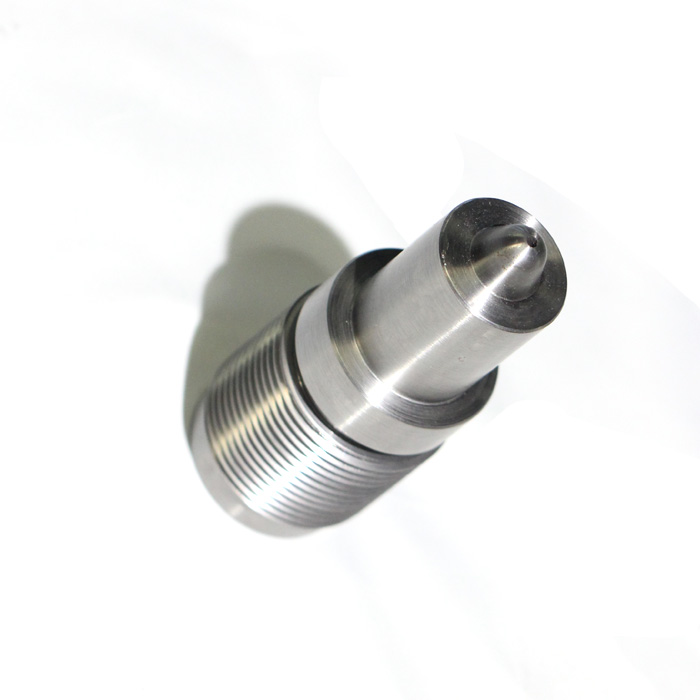

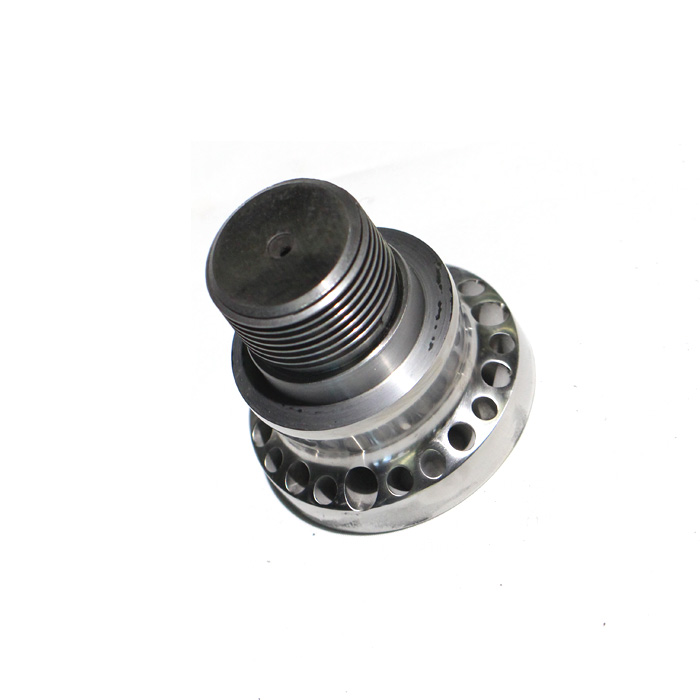

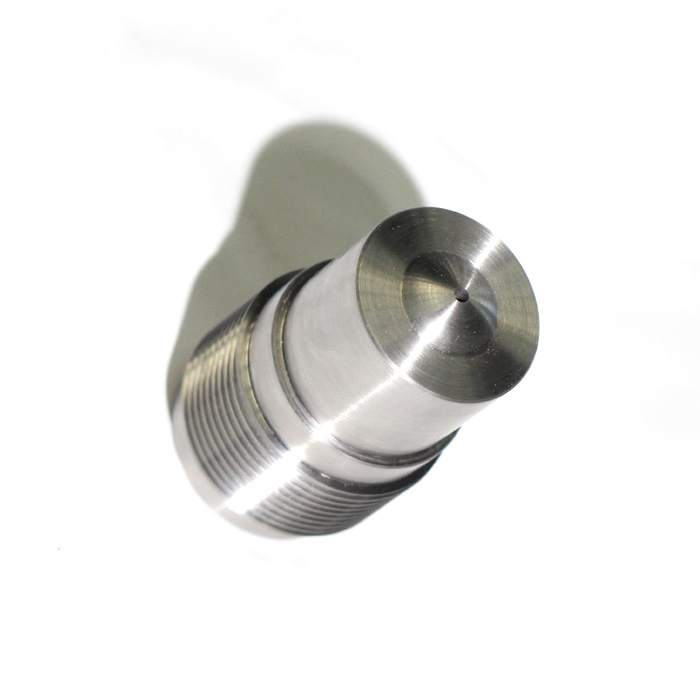

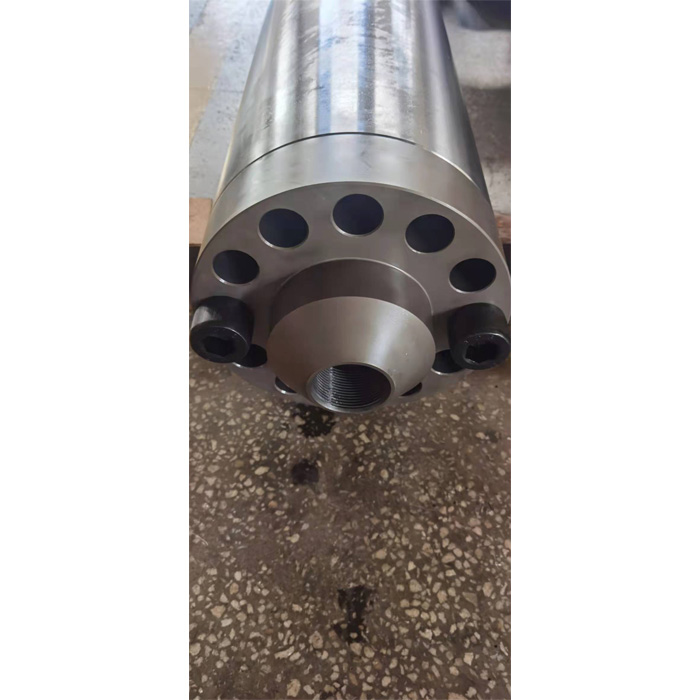

Barrel nozzle

Barrel nozzle always stays with its injection barrel.

As a producer of injection screw barrels, we EJS naturally produce Barrel nozzles.

Other than this, E.J.S produces Barrel Nozzle, Injection Molding Machine Spare Parts for customers natioanlly and internationally and always stand behind the products we produce and provide long term support for our products.

Bore diameter available for Barrel nozzle

¢12~¢500

Popular Materials used for Barrel nozzle

38CrMoAlA(1.8509)

34CrAlNi7(1.8550)

31CrMoV9(1.8519)

D2(1.2379)

SKD61

Surface Treatment of Barrel nozzle

Nitrided

Hardened

About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.

Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels
Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Alloy Components		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		★★★	★★	★★★	★★★★
Corrosion Resistance		★★	★★★	★★★	★★★
Alloy Thickness		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficient Thermal	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		700mm~3000mm/piece
Base Steel Vastly Used		40Cr: 42CrMo
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Bimetallic Screws
Suitable for	Single Screw, Twin Parallel Screw, Twin Conical Screw
Alloy Type	Ni60	CoImonoy 56	CoImonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Thickness	1~1.5mm	1~1.5mm	1~1.5mm
Hardness	HRC 56-62	HRC 46~61	HRC 43-48
Applied Glass Fiber	Under 10%
Range of Workable Length	Any length needed
Base Steel Vastly Used	38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.

Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
