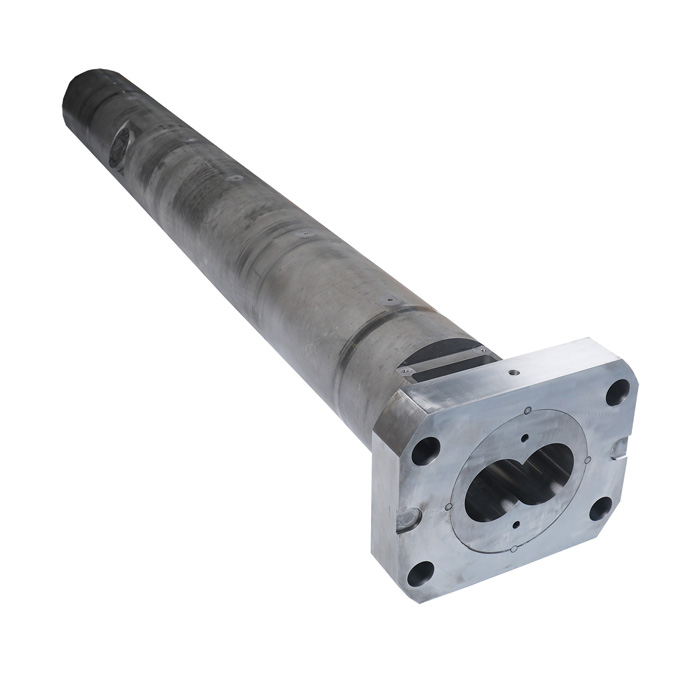

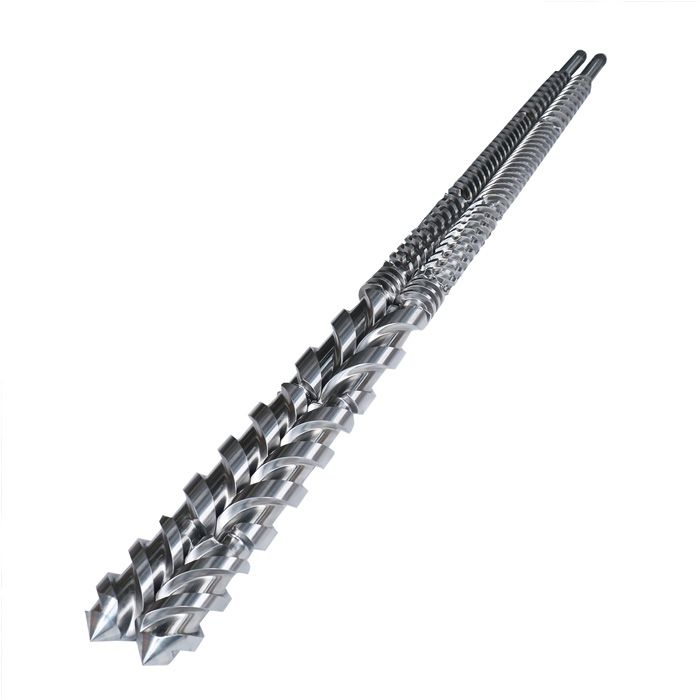

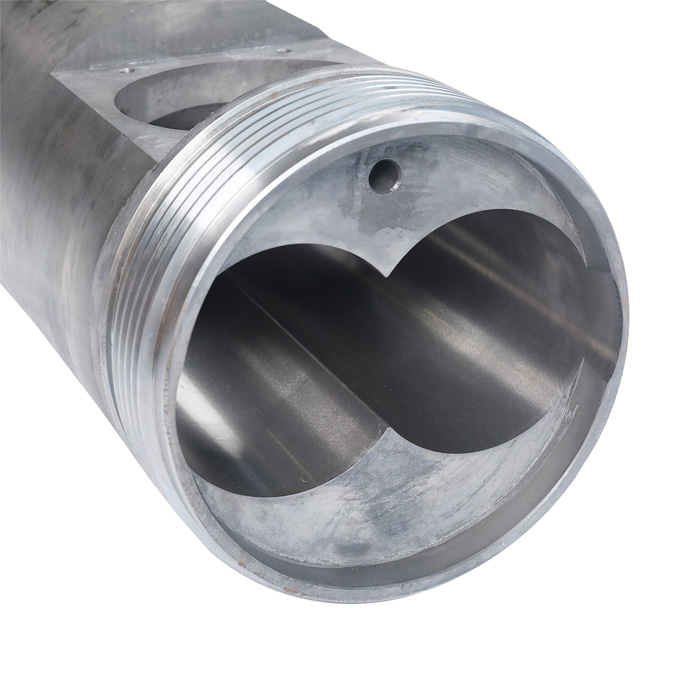

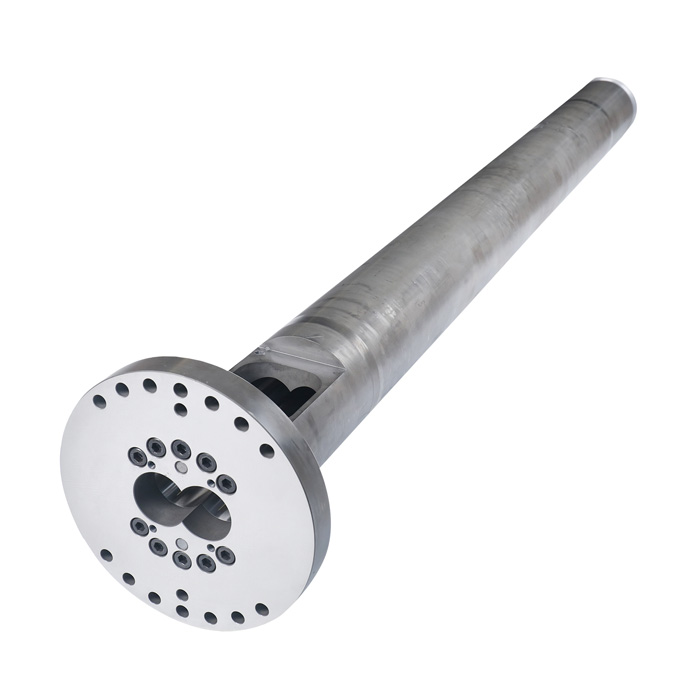

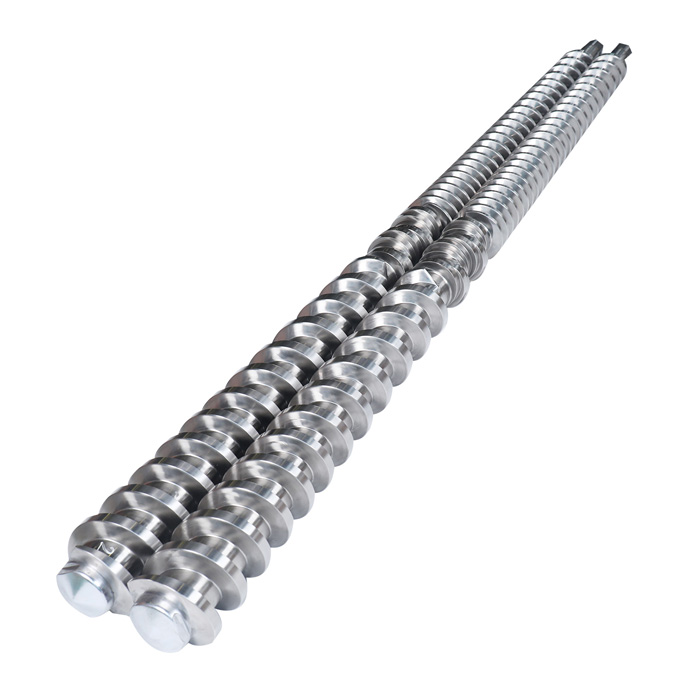

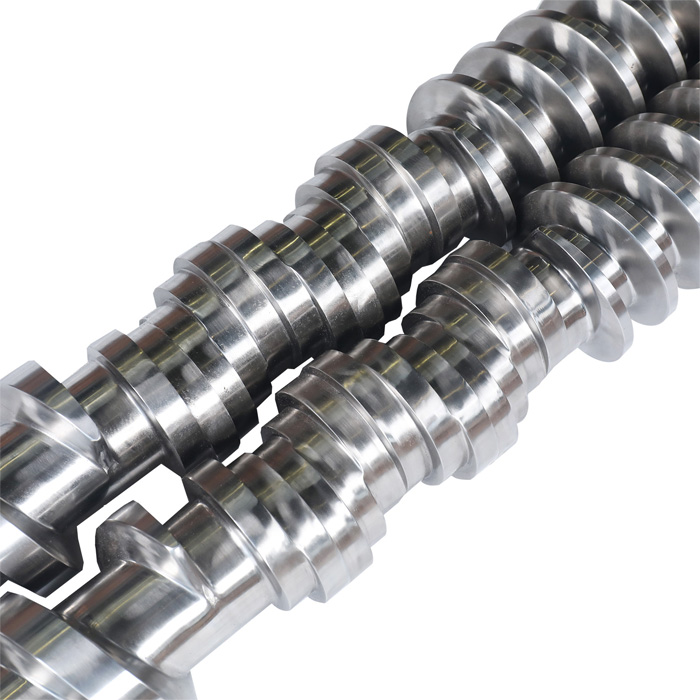

Pelletizer twin screw barrel is used on twin-screw pelletizer extruder, a high-speed, co-rotating extruder to best satisfy the compounding needs. EJS pelletizer twin screw barrel is reliable in most demanding jobs such as extrusion of plastics with rich fillers, reinforcing fibers, or with heat sensitive additives, shear sensitive additives.
pelletizer twin screw barrel
Pelletizer twin screw barrel is used on twin-screw pelletizer extruder, a high-speed, co-rotating extruder to best satisfy the compounding needs. EJS pelletizer twin screw barrel is reliable in most demanding jobs such as extrusion of plastics with rich fillers, reinforcing fibers, or with heat sensitive additives, shear sensitive additives.
One taste can’t please all. One material can’t work for all applications either, therefore we select a number of other steels to produce screws and barrels for best performances at best costs, this include parallel twin screw.
Popular Materials used for pelletizer twin screw barrel
38CrMoAlA (DIN1.8509)
34CrAlNi7 (DIN1.8550)
31CrMoV9 (DIN1.8519)
40Cr (AISI 4340)
42CrMo ( AISI4140)
D2 (DIN 1.2379)
SKD61
Surface Treatment of pelletizer twin screw barrel
Full body nitrided
Bimetallic carbide liner for twin parallel barrels
Bimetallic alloy coating for twin parallel screws
SKD61 lining
Application of pelletizer twin screw barrel
PVC Cable
Wood plastic composite product
PVC Soft Tube
PVC Ball
PVC Carpet
Medical Tube
CaCO3 Pellets Product
PVC Shoes.
About E.J.S.
EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.
Bimetallic Screw Barrels
We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications
Bimetallic Barrels |
|||||
Alloy Type |
EJS01 Alloy |
EJS02 Alloy |
EJS03 Alloy |
EJS04 Alloy |
|
Alloy Components |
Fe+Ni+Cr+B |
Ni+Cr+Co+B |
Ni+Cr+Co+V+B |
Ni+Wc+Cr+B |
|
Wearing Resistance |
★★★ |
★★ |
★★★ |
★★★★ |
|
Corrosion Resistance |
★★ |
★★★ |
★★★ |
★★★ |
|
Alloy Thickness |
2~3mm |
1.5~2mm |
1.5~2mm |
1.5~2mm |
|
Hardness |
HRC 58-65 |
HRC 50-58 |
HRC 55-60 |
HRC 55-65 |
|
Temperature Range |
≤400 |
≤450 |
≤450 |
≤600 |
|
Coefficient Thermal |
RT~250℃ |
11.0x10-6 |
11.0x10-6 |
11.5x10-6 |
11.0x10-6 |
Expansion(/℃) |
RT~400℃ |
11.4x10-6 |
11.4x10-6 |
12.4x10-6 |
12x10-6 |
Range of Workable Length |
700mm~3000mm/piece |
||||
Base Steel Vastly Used |
40Cr: 42CrMo |
||||
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good |
Bimetallic Screws |
|||
Suitable for |
Single Screw, Twin Parallel Screw, Twin Conical Screw |
||
Alloy Type |
Ni60 |
CoImonoy 56 |
CoImonoy 83 |
Alloy Components |
Ni+Cr+Fe+Si |
Ni+Cr+Si+Fe |
Ni+Wc+Cr+C |
Anti-Wearing Level |
★★★ |
★★★ |
★★★★ |
Anti-Corrosion Level |
★★★★ |
★★★★ |
★★★★ |
Alloy Thickness |
1~1.5mm |
1~1.5mm |
1~1.5mm |
Hardness |
HRC 56-62 |
HRC 46~61 |
HRC 43-48 |
Applied Glass Fiber |
Under 10% |
|
|
Range of Workable Length |
Any length needed |
||
Base Steel Vastly Used |
38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519) |
||
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good |
Quality Inspection
Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.
We provide inspection report, material certificate for every of our supplied screw barrels.
Packaging
Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
