Rubber Injection Screw Barrel

Rubber injection molding machine, or rubber injection machine, is a production technology for rubber molded products. They are mainly used to produce electrical insulation parts, shock-proof pads, seals, shoe soles, and industrial and mining rain boots. It has been widely used all over the world. At EJS, we manufacture rubber injection screw barrel for rubber injection molding machines for home markets and abroad.

Send Inquiry

Product Description

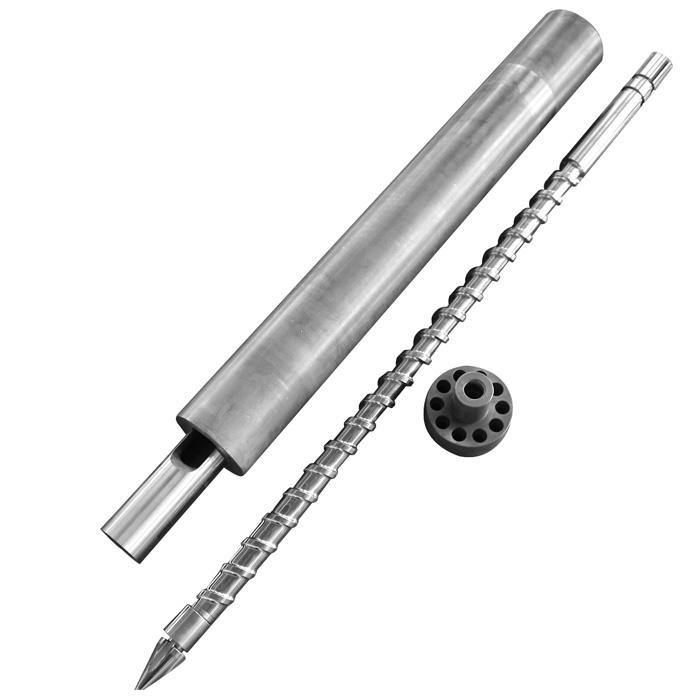

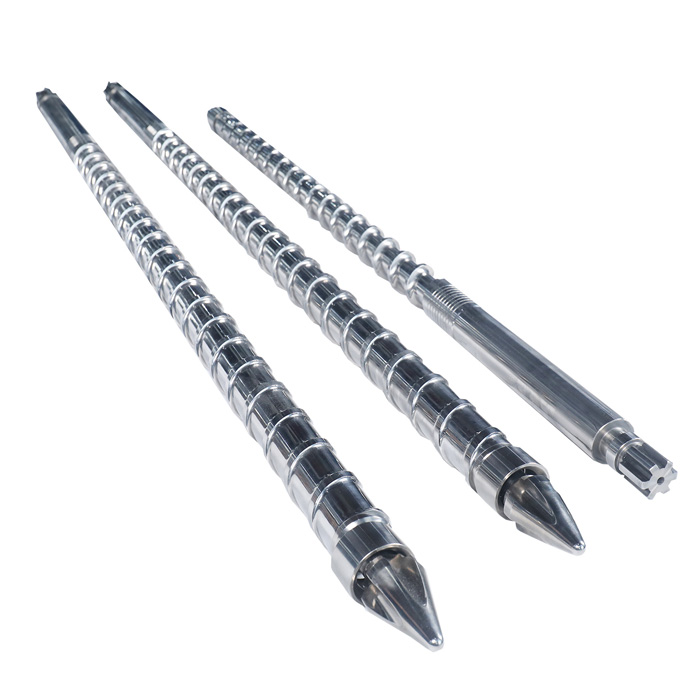

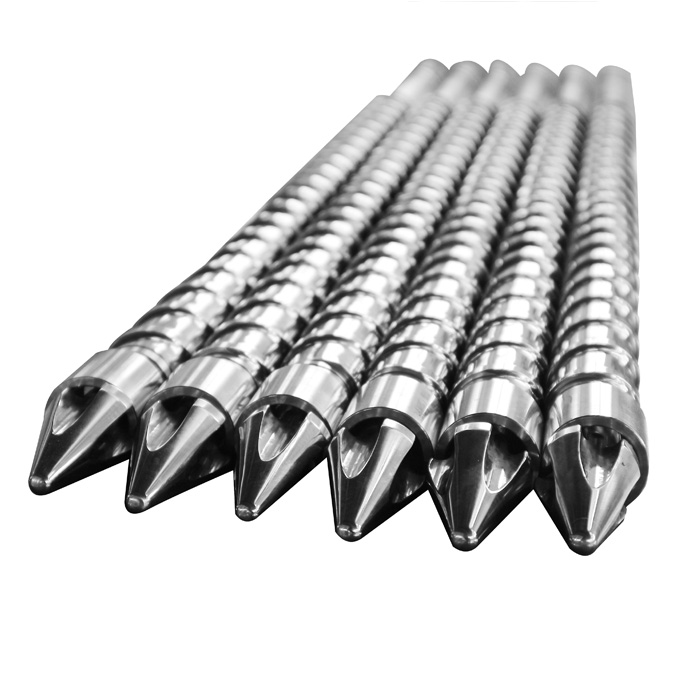

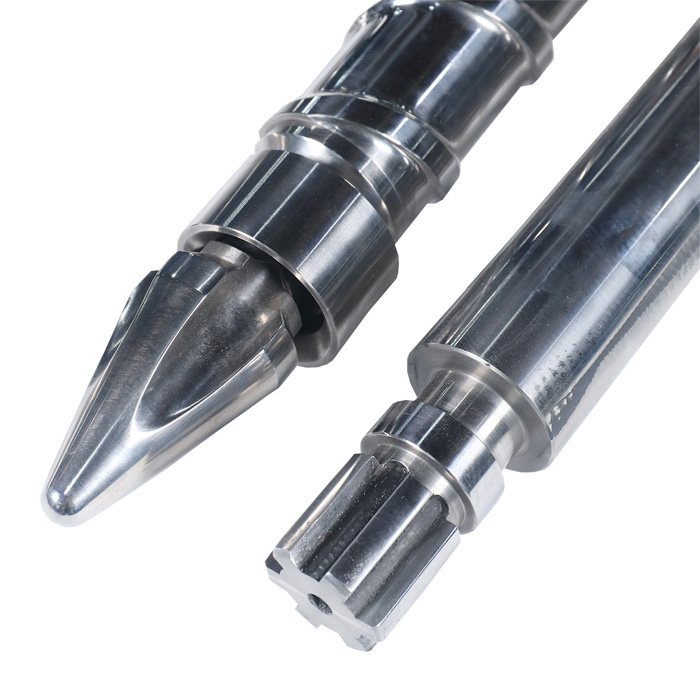

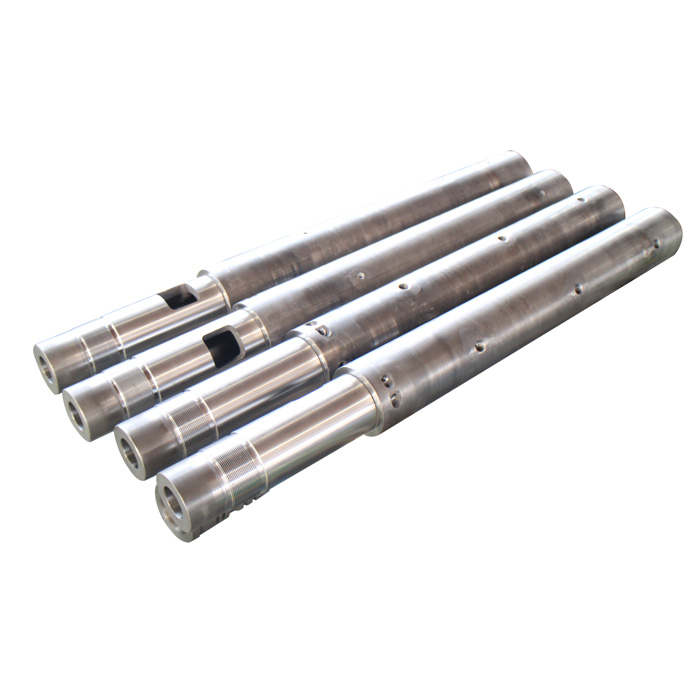

rubber injection machine screw barrel

When people walk with two legs, EJS has other groups of screw and barrel as well, such as screw for injection molding machine, injection molding screw barrel, injection moulding screw barrel, etc. This expands our product range, keeps our 400 colleagues busy, most importantly it makes customers work easier.

At EJS, we manufacture rubber injection screw barrel for rubber injection molding machines for home markets and abroad.

Bore diameter available for rubber injection machine screw barrel

¢30~¢220

Popular Materials used for rubber injection machine screw barrel

38CrMoAlA (DIN1.8509)

34CrAlNi7 (DIN1.8550)

31CrMoV9 (DIN1.8519)

40Cr (AISI 4340)

42CrMo ( AISI4140)

SKD61

SKD61 hardfacing

D2 ( Din1.2379)

Surface Treatment of rubber injection machine screw barrel

Full body nitrided

Quenching

Bimetallic alloy coating

Different percentage of glass fiber added, different bimetallic type could be chosen

Main features of rubber injection machine and rubber injection machine screw barrel:

1. Simplify the process, rapid vulcanization of rubber products with high temperature, shorten the production cycle;

2. The product size is more accurate, the physical and mechanical properties are more uniform, with better quality, which is especially suitable for the molding of thick-walled products;

3. Simple operation,less labor operation, high degree of mechanization and automation;

4. Complicated mechanism of rubber injection machine, complicated mold, big investment, high level of technical maintenance, suitable for production of large-scale molded products;

About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.

Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels
Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Alloy Components		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		★★★	★★	★★★	★★★★
Corrosion Resistance		★★	★★★	★★★	★★★
Alloy Thickness		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficient Thermal	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		700mm~3000mm/piece
Base Steel Vastly Used		40Cr: 42CrMo
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Bimetallic Screws
Suitable for	Single Screw, Twin Parallel Screw, Twin Conical Screw
Alloy Type	Ni60	CoImonoy 56	CoImonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Thickness	1~1.5mm	1~1.5mm	1~1.5mm
Hardness	HRC 56-62	HRC 46~61	HRC 43-48
Applied Glass Fiber	Under 10%
Range of Workable Length	Any length needed
Base Steel Vastly Used	38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.

Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
