Cold Feed Rubber Extrusion Screw and Barrel

Cold Feed Rubber Extrusion Screw and Barrels are ideally used for different types of rubber and sealants. By eliminating the warm up mill before feeding, a cold feed extruder helps in economic sense as well as reduces the heat cycle for rubber compounds.

Send Inquiry

Product Description

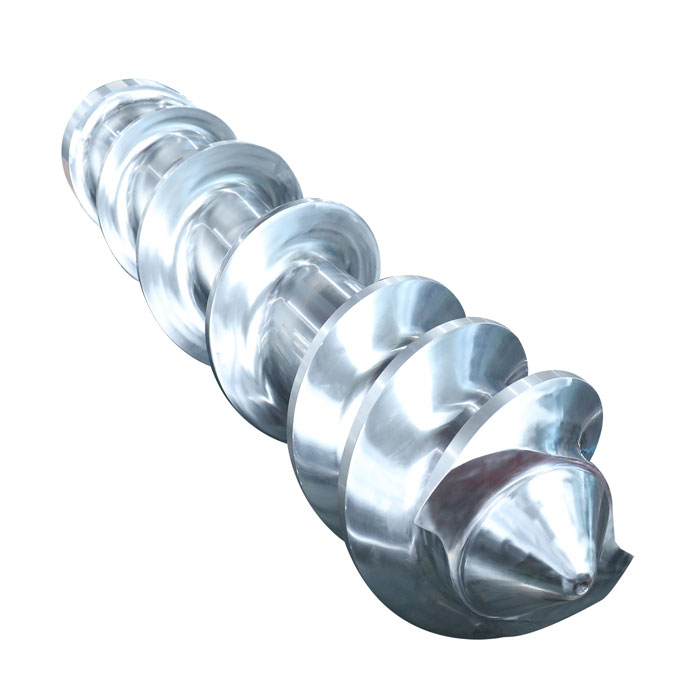

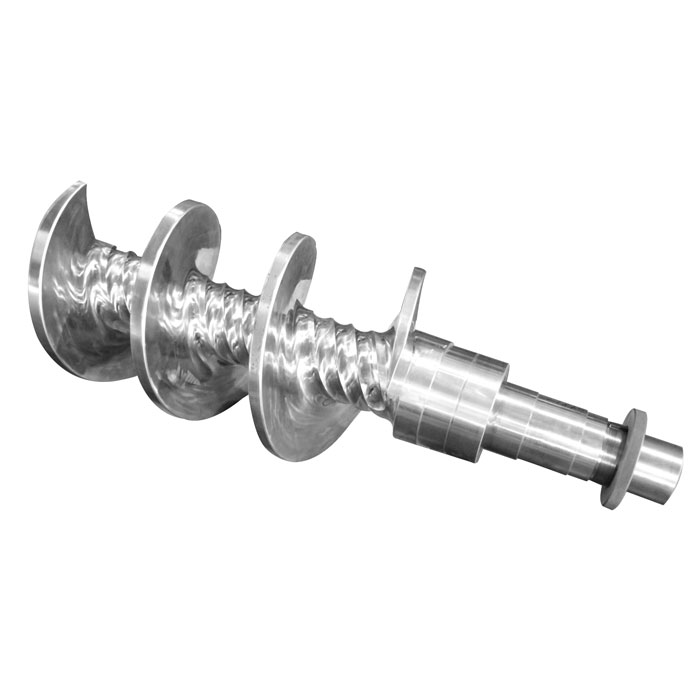

cold feed rubber extrusion screw and barrel

Cold Feed Rubber Extruders are ideally used for different types of rubber and sealants. By eliminating the warm up mill before feeding, a cold feed extruder helps in economic sense as well as reduces the heat cycle for rubber compounds.

Cold feed rubber extrusion screw and barrel are produced at EJS for cold feed extruder for over 20 years, with customers nationally and internationally. Unlike western people, we Chinese prefer not to put all eggs in one basket. When we focus on screws and barrels, we have different types, such as rubber screw barrel. Therefore when one product is less requested, the other one might need more. This will keep our factory in good balance.

Bore diameter available for cold feed rubber extrusion screw and barrel

25 ~ 300mm

L/D ratio for cold feed rubber extrusion screw and barrel

Varies from 15D to 20D

Surface Treatment of cold feed rubber extrusion screw and barrel

Nitrided

Hard Chrome Plating

Ceramic coated

Hardfacing / Bimetallic with Ni60, Colmonoy 56, Colmonoy 83

Quenching

Cold feed rubber extruder includes motor, reduction box, feeding device, cold feed rubber extrusion screw and barrel, head, temperature control device, vacuum pump, electric control system and frame, etc.

Main features of Cold feed rubber extruders and cold feed rubber extrusion screw and barrel:

The screw used in the cold feed extruder can be divided into ordinary type cold feed screw and strong shear type cold feed screw according to the flow state of the rubber material. The screw has feeding section, compression section, flow section, exhaust section and extrusion section. The flow section with shallow grooves and constant-root constant-pitch design, increases the shearing ability and transferring stability, as well as better exhaust.

Application of cold feed rubber extruder and cold feed rubber extrusion screw and barrel:

Cold feed rubber extruders are mainly used for extrusion of various types of automotive hoses, reinforced hoses, and special-shaped hoses; automotive rubber sealing strips, double composite sealing strips, three-composites sealing strips and four-composites sealing strips; industrial hoses; textile rollers etc.

About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.

Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels
Alloy Type		EJS01 Alloy	EJS02 Alloy	EJS03 Alloy	EJS04 Alloy
Alloy Components		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		★★★	★★	★★★	★★★★
Corrosion Resistance		★★	★★★	★★★	★★★
Alloy Thickness		2~3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 58-65	HRC 50-58	HRC 55-60	HRC 55-65
Temperature Range		≤400	≤450	≤450	≤600
Coefficient Thermal	RT~250℃	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/℃)	RT~400℃	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		700mm~3000mm/piece
Base Steel Vastly Used		40Cr: 42CrMo
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Bimetallic Screws
Suitable for	Single Screw, Twin Parallel Screw, Twin Conical Screw
Alloy Type	Ni60	CoImonoy 56	CoImonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	★★★	★★★	★★★★
Anti-Corrosion Level	★★★★	★★★★	★★★★
Alloy Thickness	1~1.5mm	1~1.5mm	1~1.5mm
Hardness	HRC 56-62	HRC 46~61	HRC 43-48
Applied Glass Fiber	Under 10%
Range of Workable Length	Any length needed
Base Steel Vastly Used	38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)
Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good

Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.

Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
